Description

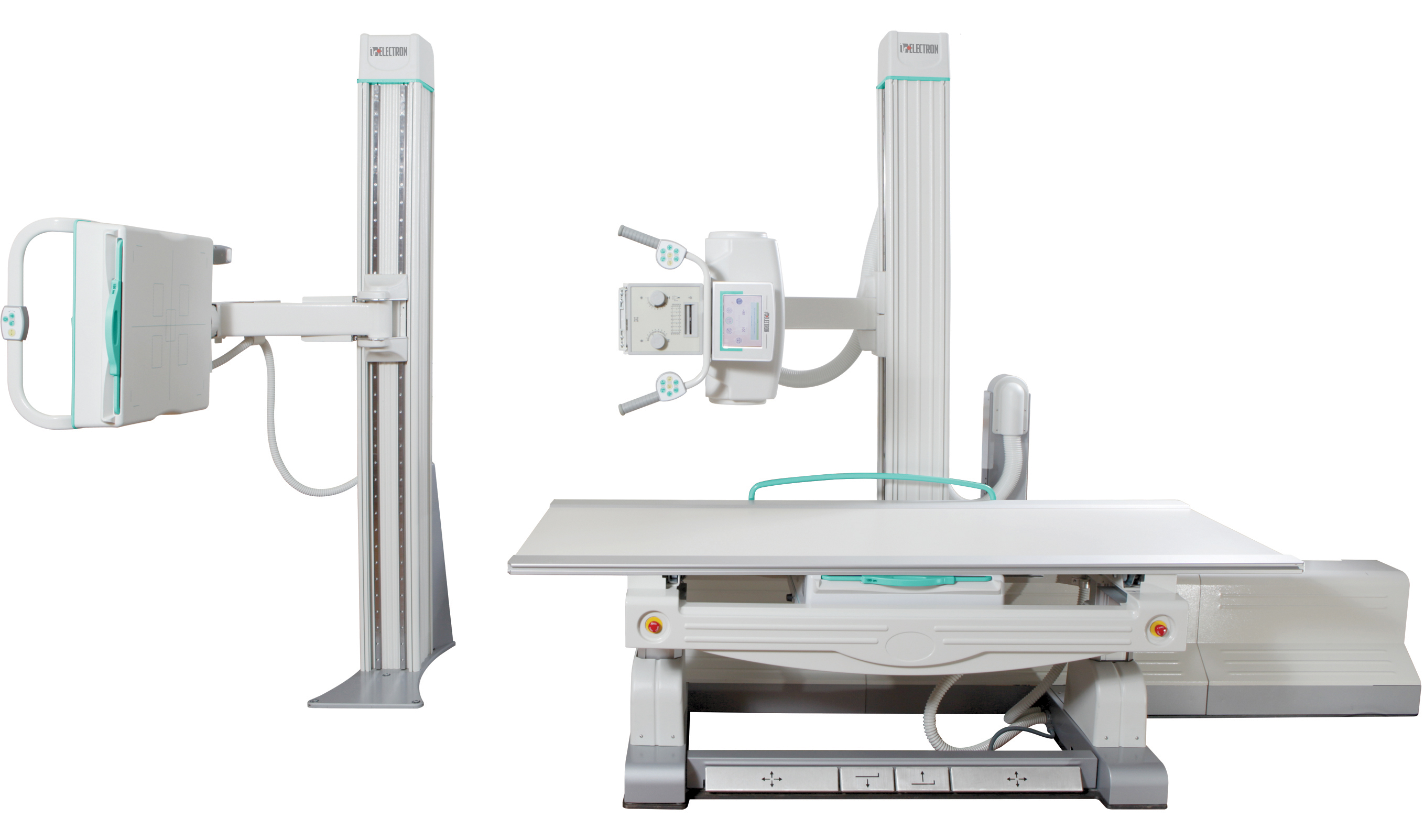

Radiography systems produced by NIPK Electron Co. are modern, fully digital and equipped with the linear tomography function. Being developed taking into account the actual needs of the medical community, our systems are available today in many healthcare facilities of the country and proved themselves to be excellent for performing routine radiography examinations.

A unique control system provides for the easiness and rate of the examination: the availability of an elevating tabletop allows regulating its height in the wide range. This facilitates patient positioning, which is very comfortable for elderly and injured patients, people with disabilities, and younger children. The wide range of stand movements provides the possibility to implement even the most complex views and nonstandard positions. The software allows setting the exposure parameters automatically.

All equipment of the NIPK Electron are included in the unified register of Russian radioelectronic products (REP) (in accordance with the decree of the Government of the Russian Federation dated July 10, 2019 No. 878) and in the register of Russian industrial products (in accordance with the decree of the Government of the Russian Federation dated July 17, 2015 No. 719)

An imaging system based on a flat panel detector, specialized program filters, APR programs, which consider the patient’s age and body build, allow obtaining a high-quality image with minimum exposure dose.

The digital radiography systems can feature both the right-sided and the left-sided position of the vertical stand. This allows arranging the ergonomic working space.

While combining the advanced digital technologies and maximum of functional possibilities, our systems provide for the high diagnostic quality and effective work of the X-ray room.

If necessary, technical solutions used in the system allow implementing the remote connection in the online mode to diagnose and remove faults and also set up the system in accordance with user demands.

Benefits

High diagnostic image quality

State-of-the-art digital imaging system
Automated program filters for image processing
High spatial resolution
Maximum possible size of the detector active area
State-of-the-art analysis of examination findings

Easiness, simplicity, and user-friendliness

Motorized movement of the tube stand and the table top
Ergonomic control consoles in the control room and on the X-ray tube assembly

Safety and low exposure dose

Highly sensitive digital detectors
Removable grid
Wide APR program range for patients of various ages and body-build
Automatic exposure control (AEC)

Multifunctionality

Wide range of tomography angle setting
The widest range of system movement
Diagnostics of the extremities with the examined region positioned directly on the detector surface
Examinations in oblique, axial, and tangential views
Possibility of imaging in the lateral position

Reliability and durability

Two reliable fixed digital detectors
Elaborated and reliable stand design
The generator uses up-to-date knowledge in the field of voltage stabilization and protection against voltage fluctuations and power surges.

Basic configuration *

Digital radiography systems

Description

High voltage generator (HVG)

· from 50 kW; from 70 kW

Digital detectors

· Flat panel detectors

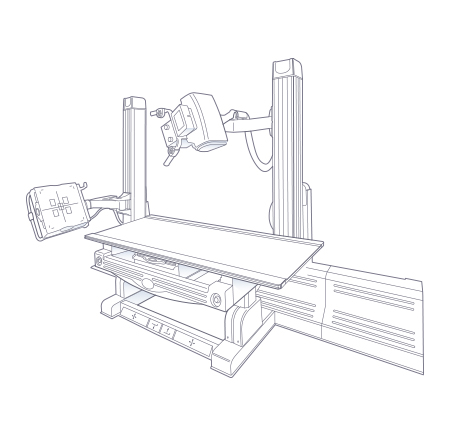

Stand

· Elevating table top

· The vertical stand with the possibility to turn a detector with its operating field upwards for imaging the extremities directly on the detector

· Motorized movement of the tube stand and the table top

Automated workstations (AWS)

· Operator’s workstation for system control (radiology technician’s AWS)

· Workstation for the work with examination findings (radiologist’s AWS)

Additionally:

medical monitors
medical printer
clinician’s workstations
operator’s workstations
PACS-server

Specialized software (SW) for radiology technicians and radiologists

Operating the patient and image databases
Specialized APR programs including that for pediatrics
Multimodality
Support of DICOM 3.0 standard
Image postprocessing
X-ray dosimetry
Color X-ray technology

Specialized appliances for patient positioning

X-ray transparent step
Positioning systems of children of various age groups

X-ray radiation protective equipment for patients and staff

X-ray protective clothes for the medical staff
Personal protection equipment for patients
X-ray protective windows of different sizes

*The “Basic configurations” section includes the information only on the most demanded configurations; the general list is significantly wider. Any configuration and technical parameters can be changed by the manufacturer’s initiative or at the customer’s request.
